BUILT TO BEAR DOWN

MODEL 40T
CoNSTRUCTION TRAILER

MODEL 40T
Yellow Bear Claw hydraulic trailer with large tires, black towing hitch, and control arm, used for transporting heavy equipment.

LOAD CAPACITY:
34,000 KG
74,800 LBS

HARDX logo with the slogan 'IN MY BODY' underneath.

STANDARD FEATURES:

  • ClearDump Tailgate

  • UniLift Hydraulic Dump Cylinder (58L / 15.4USG)

  • VibrationShield Tongue System

  • SteadyHaul Tandem Axle

  • DuraSwivel Hitch

  • ControlFlex Suspension

  • Hydraulic Jack

OPTIONAL FEATURES:

Underneath view of a vehicle showing its suspension system, large off-road tires, and parts of the chassis and hydraulic components.

Air Brake Upgrade

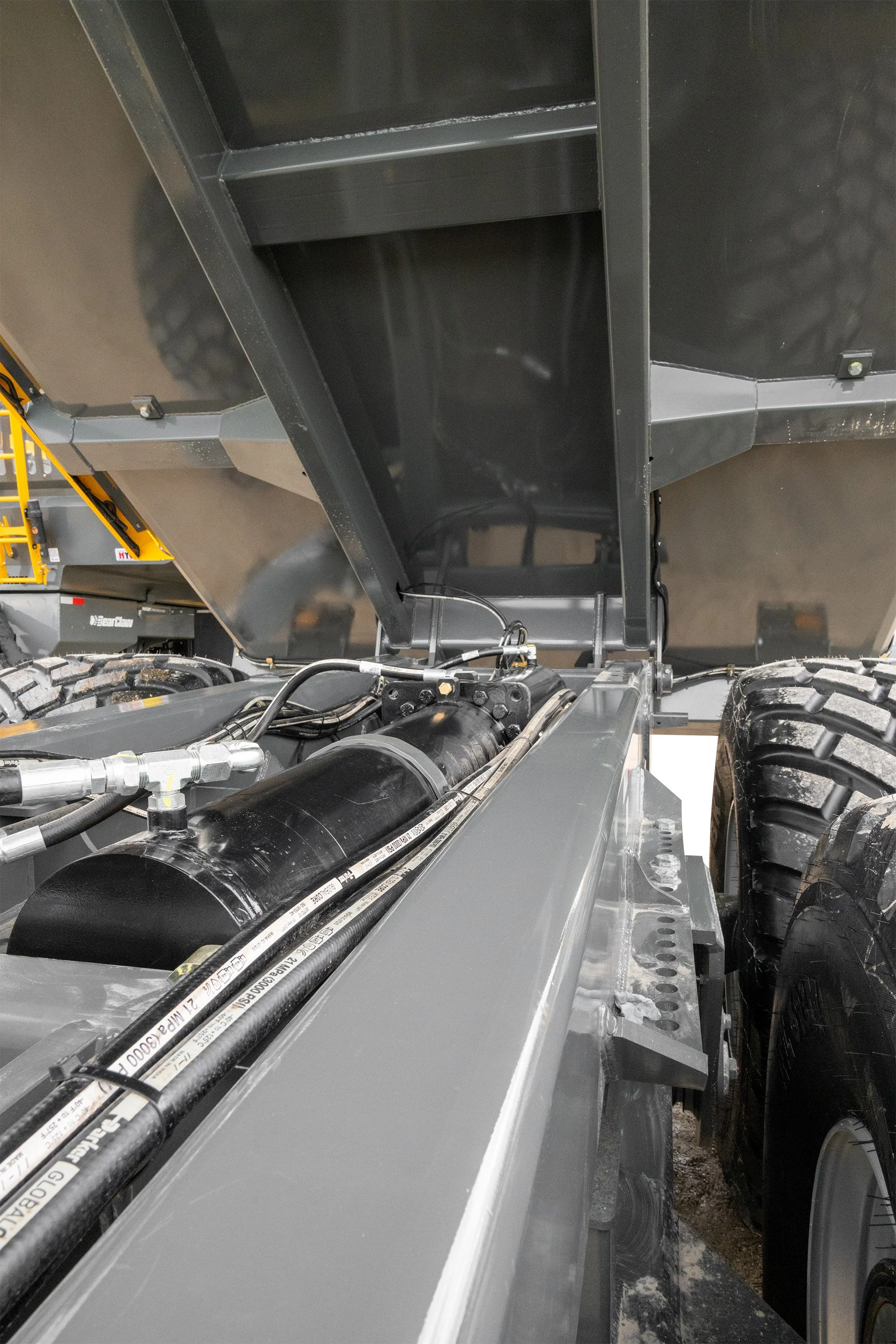

Close-up view of a large industrial dump truck focusing on the underside and hydraulic systems, with black hydraulic hoses and parts visible, as well as a portion of the truck's tire.

Patented LeanLift Cylinder Kit

Yellow and black equipment with four large tires, used for lifting or transporting heavy loads, mounted on a trailer with a hitch for towing.

12” Removable Side Extensions

Close-up of large black rubber tires on a yellow industrial vehicle with a gray undercarriage, labeled 'PATENT PENDING'.

Tire Upgrade

Badge indicating 1-year warranty on parts, featuring a large number 1, stars, and bold text.
Badge with a gold border and black and white text stating '6 Months Warranty Labor'.

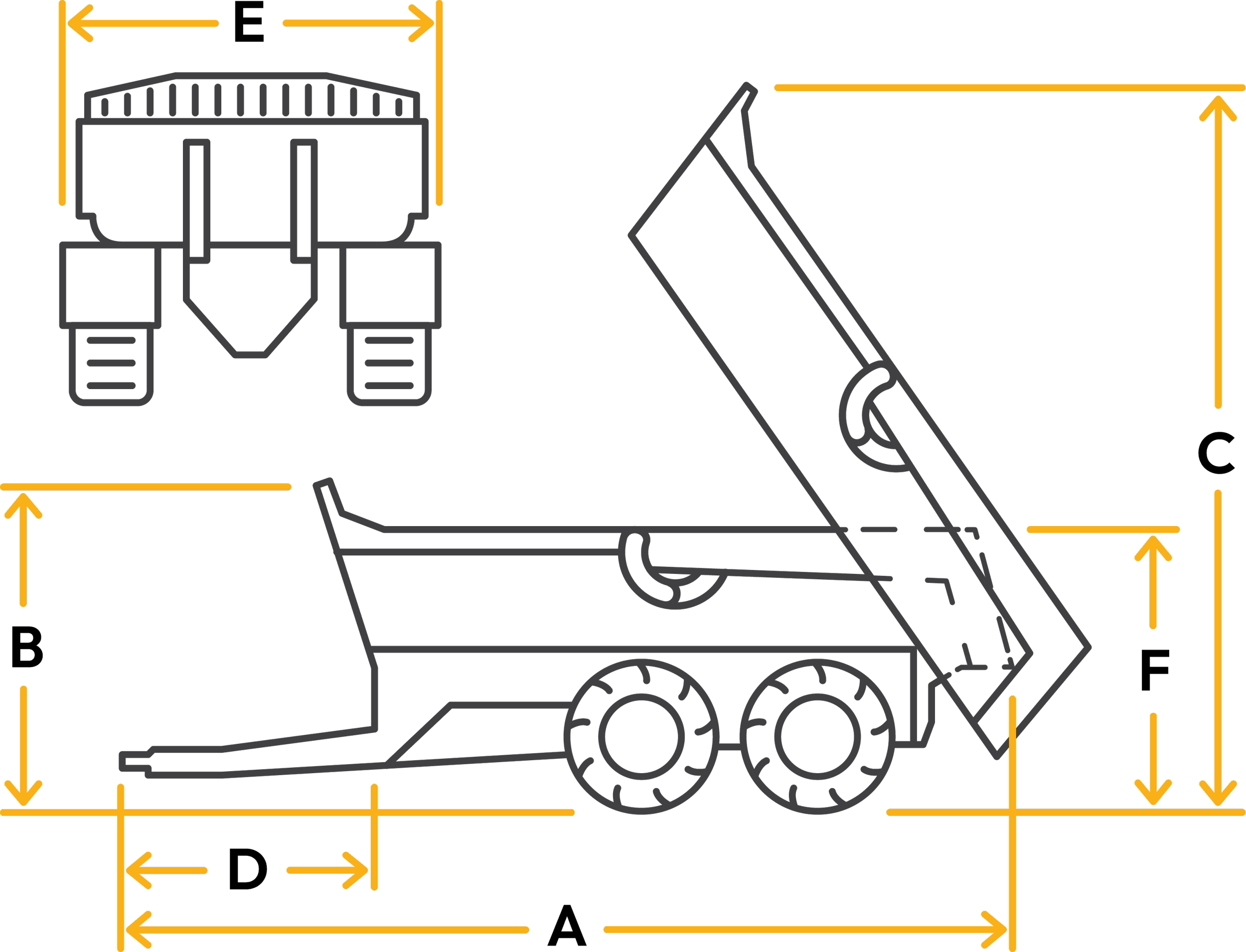

Technical drawing showing a front view of a mechanical part on the left and a side view on the right on a black background with yellow measurement lines.
BearClaw 40T
Load Capacity Overall Length
- A -		 Overall Height
- B -		 Max Height Tipped
- C -		 Tongue Length
- D -		 Overall Width
- E -		 Loading Height
- F -		 Struck Volume
(Standard)		 Heaped Volume
(35 deg heap)		 Empty Tongue Weight Approx. Weight
lbs kg Inches Inches Inches Inches Inches Inches Cubic Feet Cubic Meters Cubic Feet Cubic Meters lbs kg lbs kg
74,800 34,000 341 136 303 88 123 121 585 16.57 780 22.09 2300 1043 26,200 11,884

STANDARD FEATURES

Yellow vehicle with a red and yellow warning light attached underneath.
Close-up of large off-road tires with webbed tread and yellow and red tail lights mounted on a vehicle with a black and yellow frame. The vehicle has a black box labeled 'bearclaw' and a gray protective cover.
Close-up of a treadmill's rear strap with a chain connected to it.

BEARCLAW TECHNOLOGY

Image shows the underside of a yellow piece of heavy machinery with a metal hydraulic or piston rod extending into a circular opening, secured with bolts.

UniLift Hydraulic Dump Cylinder

  • The UniLift Hydraulic Dump Cylinder uses a single multi-stage design that eliminates large hydraulic systems and complicated controls while reducing maintenance and fluid requirements for reliable, cost-effective dumping power.

Close-up of a mechanical or industrial machine component, showing a spring, bolts, and metal frame parts in black and white.

ControlFlex Suspension

  • Our patented ControlFlex Suspension delivers a stable, terrain-conforming ride that protects equipment and job sites while keeping trailers on the road instead of in the repair bay, maximizing uptime and operational efficiency.

Modern green tractor with yellow wheels and a yellow dump trailer raised, set against a black background.

ClearDump Tailgate

  • Our patented ClearDump Tailgate flips completely forward for unobstructed dumping and doubles as tractor cab protection, eliminating hang-ups while maximizing efficiency and equipment safety.

Underneath view of a vehicle chassis showing suspension components, large off-road tires, and metallic parts.

SteadyHaul Tandem Axle

  • The SteadyHaul Tandem Axle with 10-bolt hubs delivers unwavering strength and stability, providing the confidence to haul big loads with proven load-handling capability.

Close-up view of a mechanical component with metal parts, bolts, and a black rubber element, possibly part of industrial machinery or a vehicle frame, in black and white.

VibrationShield Tongue System

  • Our VibrationShield Tongue System dampens vibrations and eliminates shock from shifting loads, providing smooth, confident towing while reducing vehicle wear and protecting operator comfort.

Close-up of black metal trailer hitch with attachment components and bolts, isolated on black background.

DuraSwivel Hitch

  • The DuraSwivel Hitch twists to conform to terrain while providing critical rollover protection, keeping your towing vehicle upright by letting the trailer roll independently for maximum operator safety.
